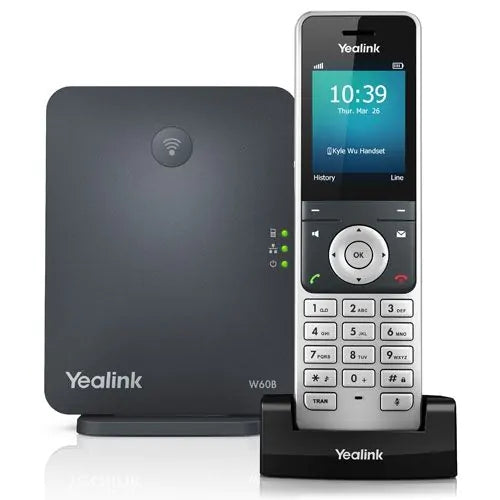

The W60P Bundle includes the W56H Handset and W60B Base Station with up to 30hr talk time, 400hr standby, & quick charge. Perfect for workers on the go, the W60P enables 8 simultaneous calls up to 50m indoors and 300m outdoors. Audio quality is great in high and poor bandwidths. It pairs with 8 Yealink W52H/W56H handsets and has Zero Touch Provisioning for easy setup & maintenance.

Phone Features

• Up to 8 Simultaneous Calls
• Up to 8 Handsets
• Up to 8 VoIP  Accounts
• Up to 2 Simultaneous Calls per Handset
• Up to 5 Repeaters per Base Station
• Handset Selection for Receiving Calls
• Handset and Number Selection for Making Calls
• Paging, Intercom, Auto Answer, Dial Plan
• Call Hold, Call Transfer, 3 Way Conference
• Switching Between Calls
• Call Waiitng, Mute, Silence, DND
• Caller ID with Name and Number
• Anonymous Call. Anonymous Call Rejection
• Call Forward (Always/Busy/No Answer)
• Speed Dial, Voicemail, Redial
• Message Waiting Indication (MWI)
• Local Phonebook for up to 500 Entries (Store in the Base)
• Remote Phonebook/LDAP
• Phonebook Search/Import/Export
• Call History (All/Missed/Placed/Received
• Direct IP Call without SIP Proxy
• Reset to Factory, Reboot
• Keypad Lock, Emergency Call, Music on Hold
• Broadsoft Directory, Broadsoft Call Log
• Broadworks Feature Key Synchronization
• Shared Call Appearance (SCA)
• Noise Reduction System
• TLS and SRTP Security Encryption

Personalisation

• 9 Ringer Melodies
• Screen Saver
• Multilingual User Interface

Management

• Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
• Auto-provision with PnP
• Handset Upgrade - OTA (Over-The-Air) USB Port
• Configuration - Browser/Phone/Auto-Provision
• Trace Package and System Log Export

Audio Features

• Full Duplex Speakerphone
• Hearing Aid Compatible (HAC)
• Receiver Volume Control - 5 Steps
• Ringer Volume Control  -5 Steps+Off
• Multiple Advisory Tones
• Acoustic Warning for Low Battery Status
• DTMF
• Wideband Codec - Opus, AMR-WB (optional), G.722
• Narrowband Codec - PCMU, PCMA, G.726, G.729, iLBC
• VAD, CNG, AEC, AGC, PLC, AJB
• Support VQ-RTCPXR (RFC6035)

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• SNTP/NTP
• VLAN (802.1Q and 802.1P)
• 802.1x, LLDP, PPPoE
• STUN Client (NAT Traversal)
• UDP/TCP/TLS
• IP Assignment - Static/DHCP
• Support Outbound Proxy Server Backup

Security

• OpenVPN
• Transport Security Layer (TLS)
• HTTPS (Server/Client), SRTP (RFC3711)
• Digest Authentication Using MD5
• Secure Configuration File Via AES Encryption
• Support SHA256/SHA512/SHA384
• Three Level Configuration Mode - Admin/Var/User

DECT

• Frequency Bands - 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
• DECT Standards - CAT-iq2.0

Physical Features

• Indoor Range  - Up to 50m
• Outdoor Range - Up to 300m (In Ideal Conditions)
• Standby Time - 400 Hours (In Ideal Conditions)
• Talk Time - 30 Hours
• 2.4’’ 240 x 320 Pixels Colour Display
• Desktop or Wall Mountable
• LCD Backlit, Key Backlit
• Energy Saving - Eco Mode/Eco Mode+
• 12 Key Numerical Keypad, 5 Navigation Keys, 2 Softkeys, 6 Function Keys, 6 Shortcut Keys
• Three LED Indicators on W60B - 1 x Registration LED, 1 x Network Status LED, 1 x Power Indicator LED
• External Yealink AC Adapter - AC 100-240V Input and DC 5V/600mA Output
• W56H Handset Dimensions - 175mm x 53mm x 20.3mm
• W60B Base Station Dimensions - 130mm x 100mm x 25.1mm

Whats in the box?

• Yealink W56H Handset
• W60B Base Station
• Base Stand
• USB Charger Cradle
• Two Power Adapters
• Ethernet Cable
• Belt Clip
• Rechargeable Battery
• Quick Start Guide
