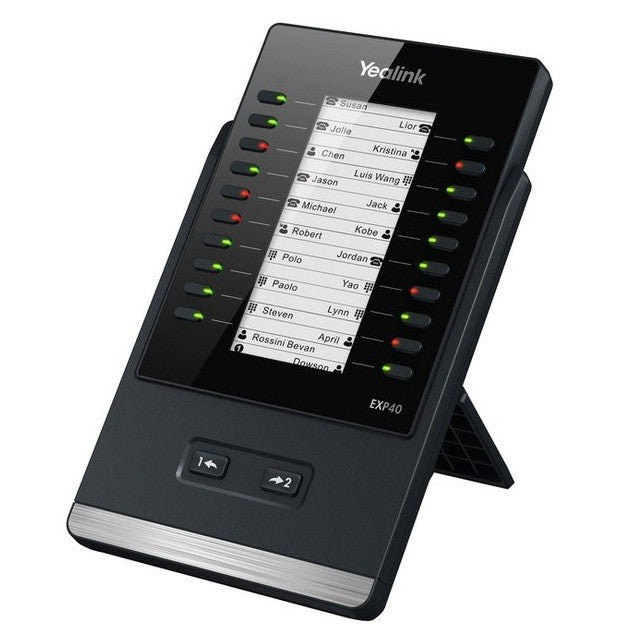

Yealink EXP40 LCD Expansion Module

The EXP40 Expansion Module for the SIP-T46G increases the capabilities of your SIP phone with a large graphic LCD. It displays two pages of 20 programmable buttons that give access to up to 40 features such as BLF/BLA, speed dialing, call forward, transfer, park, pickup, etc.

Key Features

• An exclusive collection with quality and detailed designs
• Rich visual experience with 160x320 graphic LCD
• 20 physical keys each with a dual-colour LED
• 2 independent control keys are used for fast switch pages
• Stand with 2 adjustable angles

Revolutionarily New Design

New design pursuing tiniest details for matching elegantly with the look and feel of T46G, rubber covers on the feet that contact the desk surface help prevent the phone from sliding, The new foot stand allows two positions for the device, support application of wall mountable, the backlit display eliminates the need for external light.

Expandability

Supports up to 6 Expansion Modules for an attendant console application, adding up to 240 additional buttons. it has to be powered by a conventional power supply (5V/1.2A) if exceed 3 connections.

Display

• 160x320 graphic LCD with 16-level grayscales
• LCD Backlight
• Two page views are possible
• Different icons for each function shown on the LCD

Features Keys and Indicator

• 20 physical keys each with a dual-colour LED
• 20 additional keys through page switch
• 2 independent control keys are used for fast switch pages
• Programmable for shared line, BLF List, call park, conference, forward, group pickup, group listening, LDAP, pick UP, XML Browser

Physical Feature

• Wall mountable
• Stand with 2 adjustable angles
• Expansion module (?2) is powered by the host phone
• Supports up to 6 modules daisy-chain
• 2xRJ12?6P6C?ports for data in and out
• Dimension (W*D*H*T): 127mm*213mm*167mm*45mm
• Applies to Yealink IP Phone
• Operating temperature: -10~50°C
• Operating humidity: 10-95%
